SKU : JAM54S-31-410-GR-AB

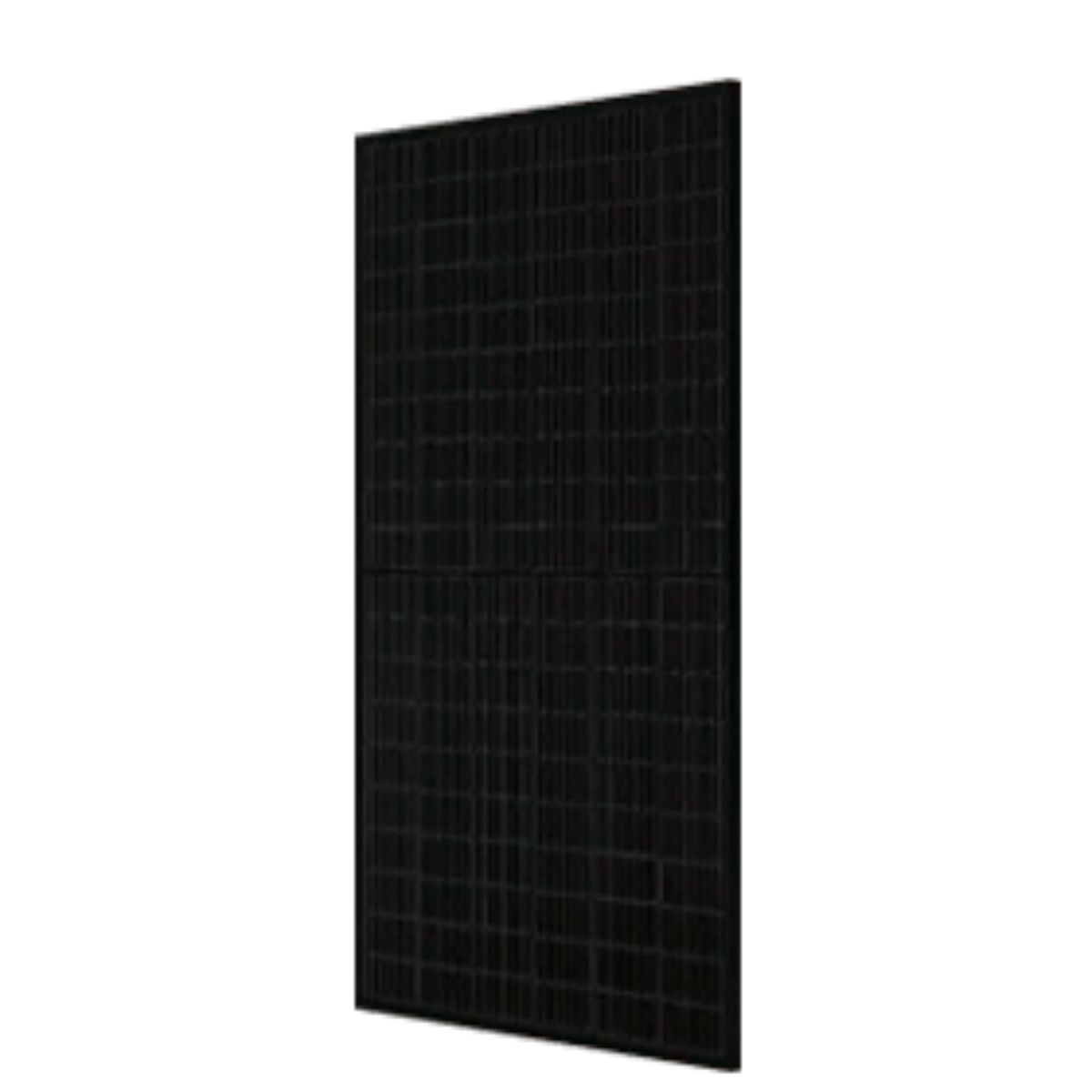

JA Solar 410W Mono PERC Half-Cell MBB All Black Short Frame MC4

£66.00 +VAT

  • Rating: 410W
  • Efficiency: 21%
  • Width: 1,134mm
  • Height: 1,722mm
  • Price per Watt: (13.5p/Wp)

JA Solar Large Wafer PERC Multi-Busbar Half-Cell All Black Module

The half-cell configuration of the modules offers the advantages of higher power output, better temperature-dependent performance, reduced shading effect on the energy generation, lower risk of hot spot, as well as enhanced tolerance for mechanical loading.

Key Features:

  • Lower cost at high energy output than most panels.
  • Less shading impact and lower resistive loss thus increasing panel production.
  • Better mechanical loading tolerance which improves longevity of the panel.
  • Lower temperature coefficient ensuring high power output in high temperatures.
  • The product is of high-quality boasting certifications with several certification bodies.

Comes with a 12-year product warrant and 25-year linear power output warranty.

Comes supplied with Staubli MC4 connectors.

Awaiting additional documents for EU market. Installation manual does not include JAM54S-31 but the supplier confirmed that it’s also applicable for it, even though it’s not stated on the manual.

German Datasheet Error – The datasheet says bifacial when in fact it is an All Black instead

This product must be installed by a qualified electrician/technician. All installations must adhere to local wiring regulations and standards. SegenSolar will not be held liable for any product malfunctions as a result of incorrectly installed systems.

If you have any technical queries about this product or wish to report any issues with the information on this page then please use the CONTACT FORM via CONTACT US

Supplier Part No:JAM54S31-410/GR
Weight:21.5 kg
Rated Power:410
WMCS Reference:BABT 8515-240-410W
Length:1,722 mm
Width:1,134 mm
Depth:30 mm
VMPP:31.45 V
IMPP:13.04 A
Isc:13.95 A
Voc:37.32 VTemp.
Coefficient (Mpp):-0.35 %
Clamp position on panel:Long and short side
Connector Type:MC4
Efficiency:21.0 %
Pallet Size:Oversized
